Over 14,000 transformers and autotransformers manufactured in 14 years
the market
manufactured
equipment tested

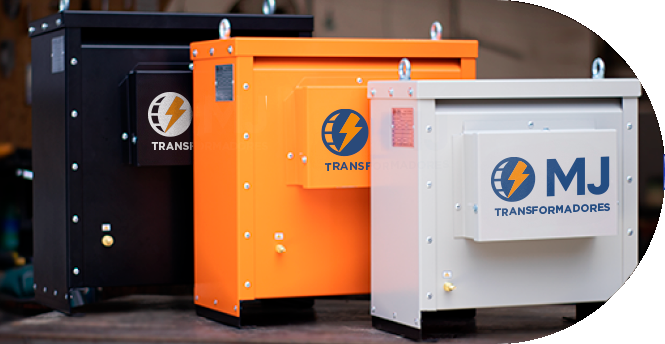

Discover our line of Transformers

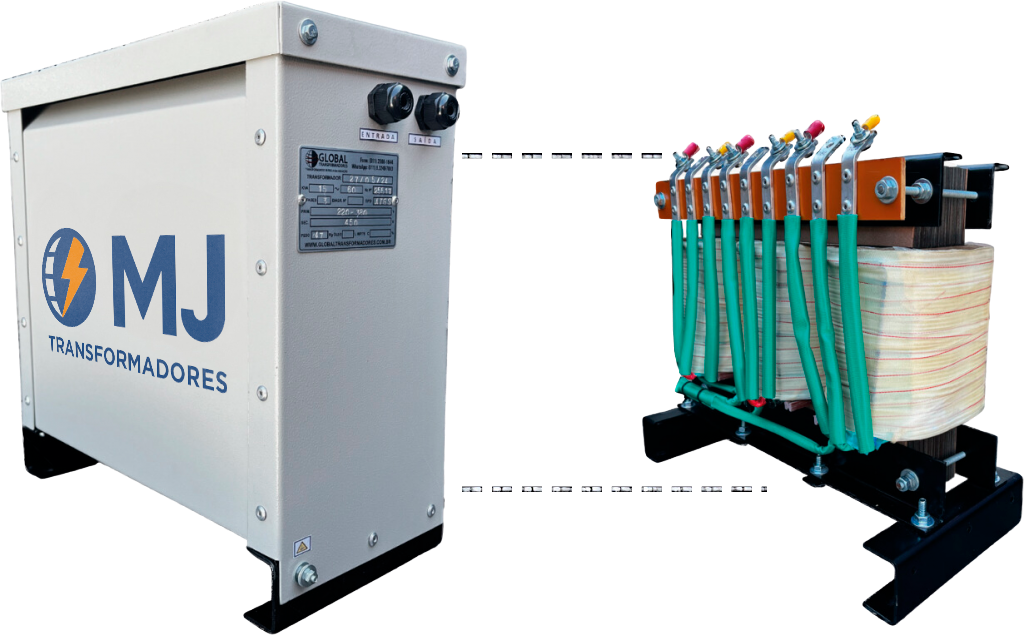

Industrial Line: ATGS/TGS Dry Type

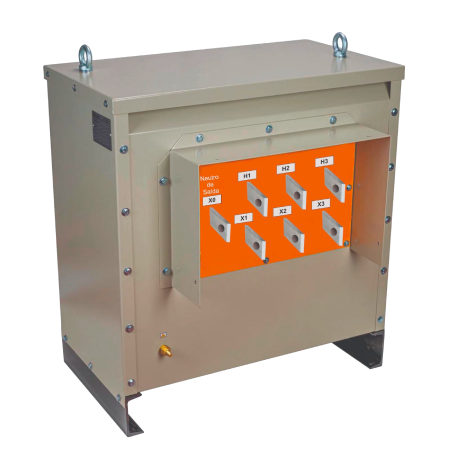

Autotransformer
An autotransformer is a type of transformer where the primary and secondary windings are interconnected, sharing part of the winding. This means there is a physical and conductive connection between the voltage input and output.
Cost-Effective: Generally, they are cheaper than isolation transformers due to the use of less winding material.
Efficiency: They offer high efficiency, especially useful in applications where the voltage difference between input and output is not significant.
Usage Limitations: Not suitable for applications that require electrical isolation between input and output, such as in sensitive or safety-critical equipment.

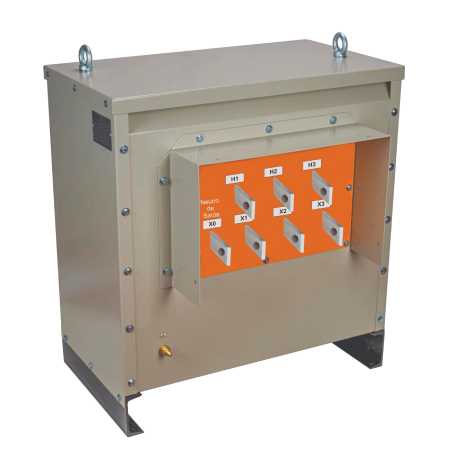

Isolation Transformer
An isolation transformer, on the other hand, has separate primary and secondary windings, providing complete electrical isolation between the input and output. This means there is no direct physical connection between the input and output circuits.
Safety: Offers greater safety, as the isolation between input and output protects against electric shocks and interference.
Versatile Applications: Ideal for sensitive equipment, laboratories, hospitals, and industrial applications where safety and isolation are crucial.
Investment: Generally more expensive than autotransformers, but the investment is justified by the safety and versatility.

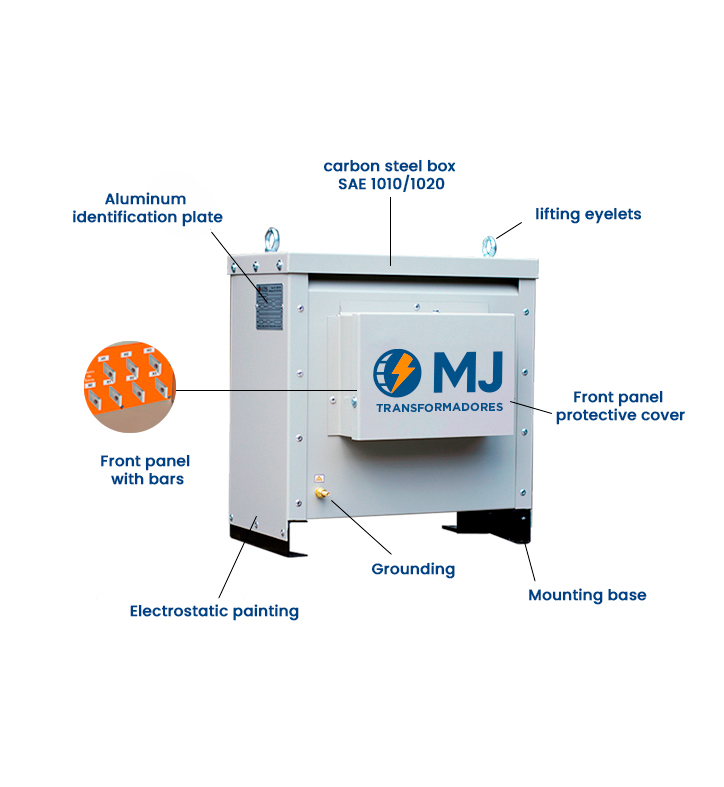

MECHANICAL SPECIFICATIONS
- Standard voltages: 220 x 380 x 440 V (others upon request)
- Insulation level: 0.6 or 1.2 kV (as requested)
- Frequency: 50–60 Hz or 50/60 Hz (custom orders)
- Temperature class: B (130º), F (155º) or H (180º) (custom orders)

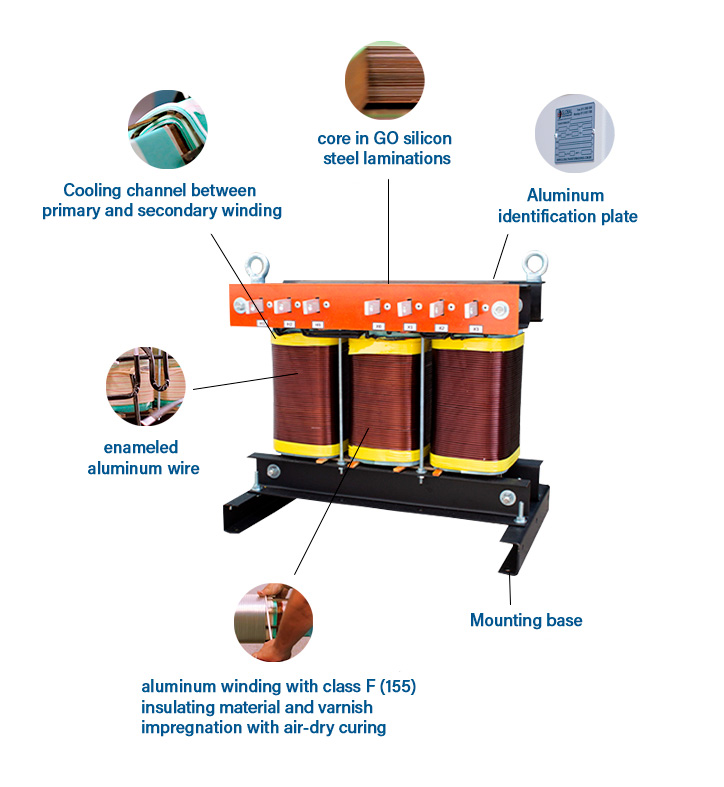

- Core made of GO silicon steel laminations, thickness 0.27 or 0.30 mm
- Protection rating: IP 23 (others upon request)
- Manufactured in accordance with ABNT NBR 10295 and 5380 standards
- Dry-type insulation with polyester varnish impregnation and air drying
- Epoxy electrostatic painting in RAL 7032 color (textured beige)
- Enclosure made of SAE 1010/1020 carbon steel
- Front connection panel
- Base for fixing and grounding
- Lifting eye
- 100% individual testing of all parts
MJ Transformers for Solar Energy: The solution for your photovoltaic Project
Combining innovation, efficiency, and reliability, our transformers are key components for the success of photovoltaic projects.

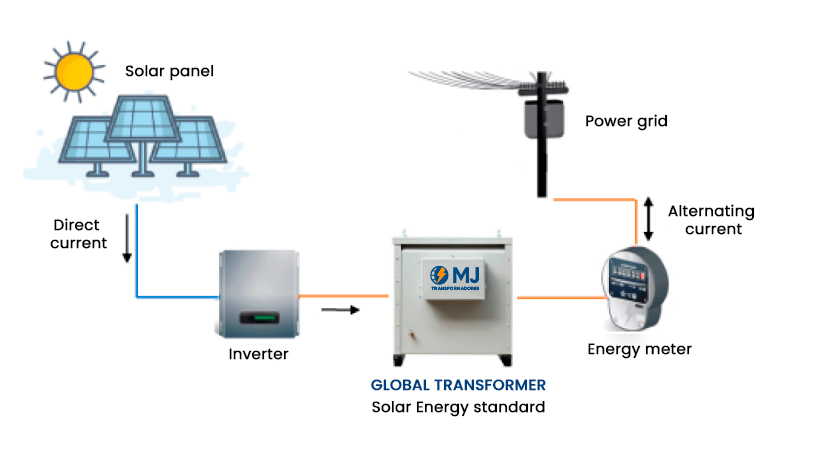

Photovoltaic solar energy, which converts light into electricity using solar panels, inverters, and, in some cases, three-phase transformers, is a clean and efficient energy source for homes, businesses, and rural properties. This technology has experienced exponential growth and a significant drop in costs, making it competitive with traditional energy sources. Currently, it is the third-largest source of renewable energy in the world and is rapidly expanding in Brazil, thanks to its high solar irradiation potential.
MJ Transformers meets this growing demand with high-efficiency, reliable three-phase transformers, suitable for photovoltaic systems and solar inverters. These transformers, manufactured in accordance with strict standards, ensure quality and safety for the system. When choosing between an isolation transformer and an autotransformer for photovoltaic systems, the decision depends on the need to match the inverter voltage to the grid, always considering both efficiency and system safety.
Painel Solar
Corrente
Contínua
Inversor
Corrente
Contínua
Transformador Global
Padrão Energia Solar
Medidor de Energia
Corrente
Contínua
Rede
Elétrica
Painel Solar
Inversor
Transformador Global
Padrão Energia Solar
Medidor de Energia
Rede
Elétrica

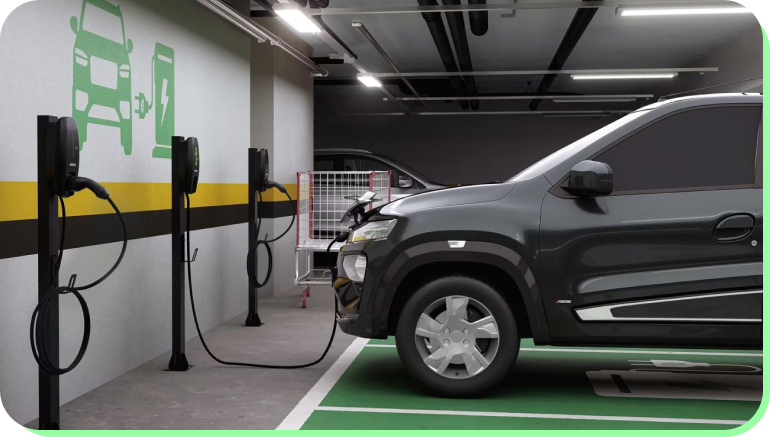

MJ TRANSFORMERS FOR ELECTRIC VEHICLE CHARGERS
MJ Transformers also offers solutions for the growing demand for charging infrastructure in modern buildings, including parking spaces for electric vehicles.
One of the challenges in many new projects is the compatibility between charging systems, which often require 380 volts, and common facilities operating at 220 volts.
We are prepared to serve urban spaces, ensuring safety and efficiency.
If you are looking for a reliable solution to adapt to the expanding electric vehicle market, MJ Transformers has the expertise and technology you need.
Contact us to equip your project with the best in transformers for electric vehicles.

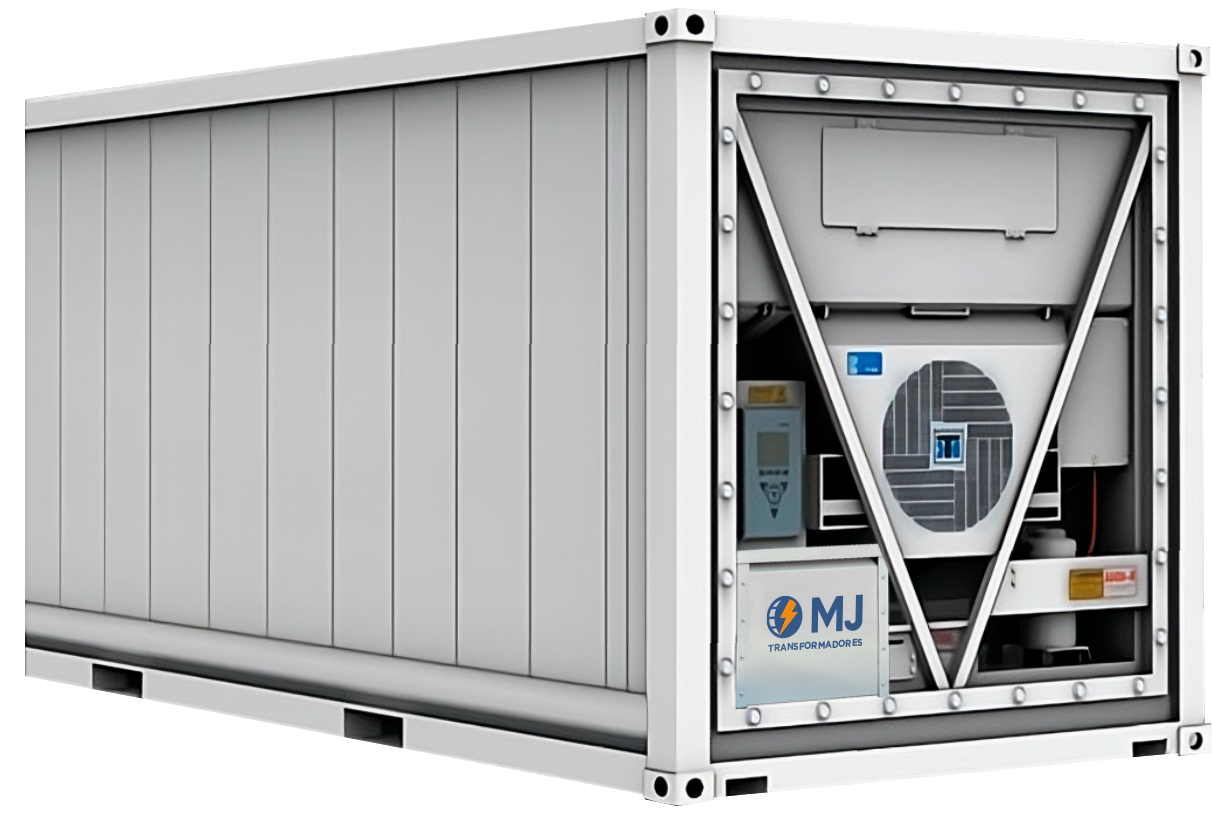

Container Transformer
Being the most compact transformer for this application, it fits into container machinery and can be transported as an integral part of it, thus speeding up the entire installation process, saving time, and eliminating the need to remain outside the container.
Meeting the high demand from our clients, our company has developed a unique and exclusive piece of equipment for use in refrigerated containers, with inputs of 220V and 380V (three-phase) and an output of 450V (three-phase) at 15 kVA.
In this way, a single piece of equipment meets the two most common input voltages of commercial establishments and companies where the container will be installed, making it easier to meet each client’s specific needs.
- Input voltages: 220V and 380V; Output: 450V three-phase
- Insulation level: 0.6 kV
- Frequency: 50/60 Hz (on order)
- Protection enclosure: IP 23 with electrostatic painting in RAL 7032 color
- Internal connection terminals and grounding terminal
- 100% individual testing of all equipment
- 12-month warranty
Expanding activities beyond the national territory
Meet MJ Transformadores, the international division of MJ Transformadores. We specialize in the production and distribution of transformers and autotransformers. Now with operations in the United States and several South American countries, we bring MJ quality and excellence to new markets.
Easy installation
Immediate delivery for most capacities
2-year warranty
Special payment conditions
SECTORS WE SERVE
Photovoltaic Solar Energy
Construction and Infrastructure
Industry
Steel Industry
Commerce and Retail
Public Services
Oil and Gas Sector
Pharmaceutical Industry
Chemical Industry
Rubber Industry
Printing Industry
And much more
MJ TRANSFORMERS – TRANSFORMING ENERGY INTO SOLUTIONS
MJ Transformers goes beyond simply supplying equipment. We are dedicated to transforming energy into effective solutions through high-quality products. In a market where excellence and reliability are paramount, we are committed to delivering equipment—both for sale and rental—that meets the highest manufacturing standards. We use top-quality materials and have a highly qualified team to ensure the total satisfaction of our customers.
Our mission is to be a reference in the sector, constantly innovating and pursuing excellence in every project. Our goal is to be more than just suppliers to our clients; we strive to be true business partners, integrating energy solutions that add value and efficiency to their operations.
